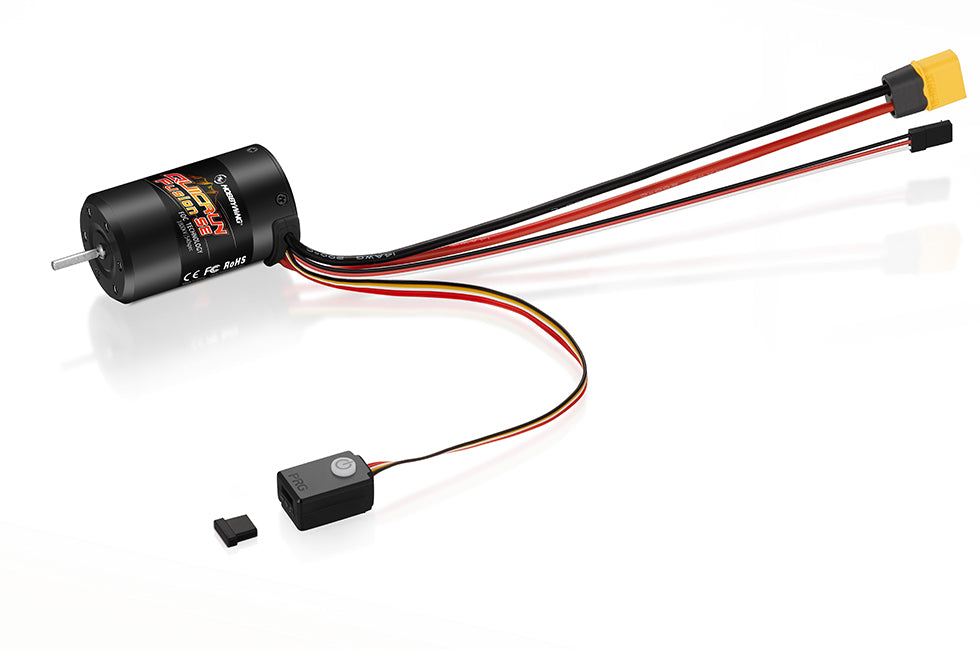

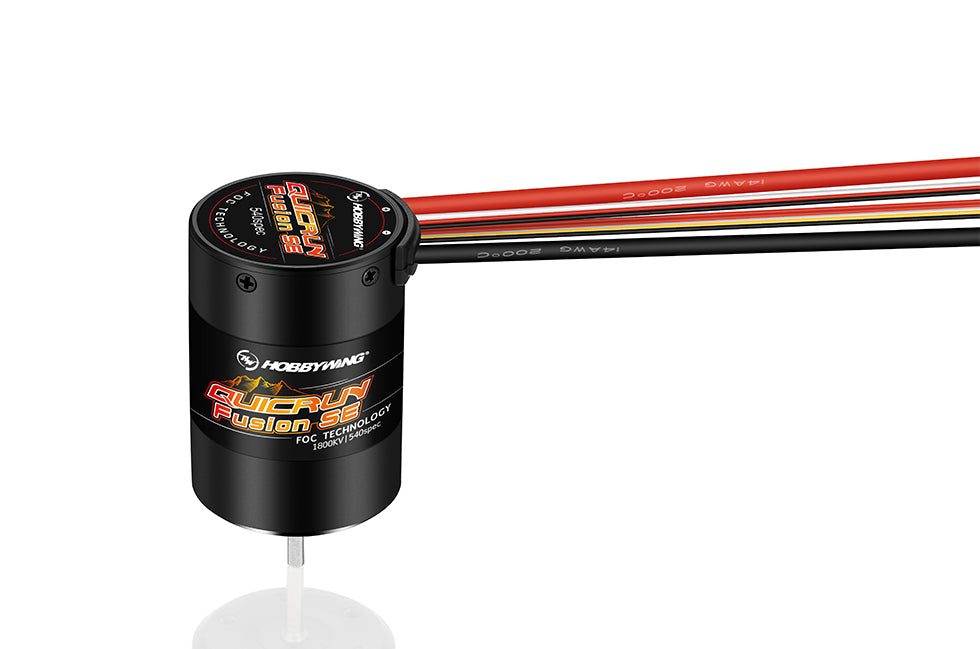

QUICRUN Fusion SE for Crawler-1800KV e 1200KV 540spec (2 em 1 FOC System)

QUICRUN Fusion SE for Crawler-1800KV e 1200KV 540spec

• The integrated design of the ESC and the motor greatly reduces the overall volume and weight, and makes the layout and wiring of car frame simpler and more convenient.
• The FOC driving mode, low speed torque is strong. Smooth running at extreme low speed, which is far superior to the common sensored brushless power system, even better than the brushed power.
• Thanks to the sine wave driving mode, the whole system has high efficiency, small heat, and effectively extends the endurance time; and the motor runs more quietly and soft.
• The protection grade of the whole system is IP67, with excellent waterproof and dustproof performance. Under various weather conditions, the whole system can easily deal with the complex road surface containing silt, ice and snow, and water.
• Intelligent torque output and speed closed-loop control, fully experience the cruise control and steep slope slow descent function of 1:1 vehicle, making the control handy
• Active drag brake force adjustment, providing super strong parking capacity on slope.
• Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection.
• It supports LED program box to set ESC parameters, and has independent parameter setting interface, which is integrated on electronic switch, making setting parameters more convenient.

  Specifications

  Product Name	QuicRun Fusion SE
  P/N	1200KV-30404318  / 1800KV-30404317
  Application	1/10th Rock Crawler, Brushless Sensored system
  Waterproof	Yes
  Cont./Peak Current	40A
  BEC output	6V/7.4V adjustable, continuous current 4A (Switch mode)
  Lipo Rating	2-3S Lipo/6-9 Cell NiMH
  Motor KV	1200KV  /  1800KV
  Diameter / Length of Motor	36mm / 58.1mm
  Shaft dia./ exposed shaft length	3.175mm / 16.5mm
  Motor Poles	4
  Input Wires	Red-14AWG-200mm*1 / Black-14AWG-200mm*1
  Input connectors	XT60
  	(Note: All the wire length above is the original length, not the length you see from the outside.)
  ESC Programing via	LED Program Box
  Program Port	Independent programming interface(switch position)
  Firmware Upgrade	Not supported
  Size / Weight	36X58.1mm / 201g (including wires&connectors)
